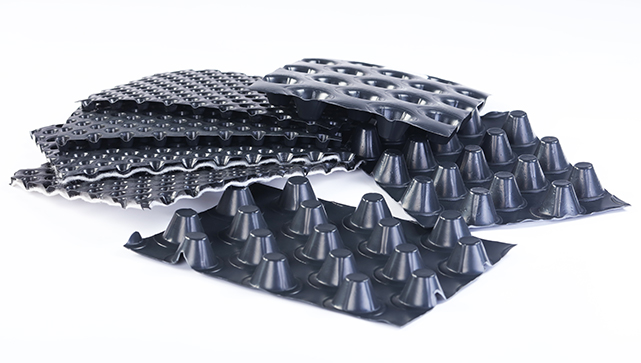

Dimple Board/Drainage Sheet is a cuspated protection sheet made of High-Density Polyethylene HDPE. It is a lightweight, Ƃexible, strong, durable, non-toxic, dimpled sheet board with 8mm deep dimples. It is impermeable to water and water vapor. It is fixed to the walls and roofs of structures to provide a filtered drainage plane that routes groundwater and gases away from the structure. It is best used as protection for a sheetwithout membrane against physical damage from backfill operations.
Our Subsidiary Company
| PROPERTIES | METHOD | UNITS | VALUE |
| Sheet Thickness | mm | 0.5 | |
| Mass per Unit Area | EN ISO 9864 | GSM | 500 |
| Polypropylene Geotextile | GSM | 150 | |
| Total Weight | GSM | 650 | |
| Dimple Height | EN 9863-1 | mm | 8 |
| Compressive Strength | EN 12311-2 | kPa | 250 |
| Tensile Strength | EN 12311-2 | N/50MM | >200/>200 |
| Air gap volume between dimples | l/sqm | 5 | |
| Drain flow capacity in plane | EN 12958 | l/sqm/s | 2.8 |
| Elongation | EN 12311-2 | % | >30/>30 |
| Width | M | 2.3 | |
| Length | M | 20 | |
| Reaction to fire | Class ‘E’ |
Dimple Board should be fixed for vertical application on the wall, ensuring the bubbles face towards the wall. A minimum overlap of 10 cm should be maintained between the sheets. Overlaps can be sealed with glue-insulated tapes. In the case of horizontal application,Dimple Board will be laid with bubbles facing the ground and an overlap of 10 cm between the sheets. Overlaps can be further reinforced with glue-insulated tapes.
• Rolls must not be exposed directly to UV radiation for over a month.
• Rolls must be stored in their original package horizontally under cool and dry condition.
• Rolls should be protected from direct sunlight, rain, etc.
Drainage layer comprising a high-performance Single Cusped HDPE core with a geotextile filter thermally bonded to one side. The product is used for drainage of all underground structures and is highly compression resistant.
| PROPERTIES | UNIT | VALUE |
| Drainage Core | HDPE | |
| Dimple Height @ 2 kPa [EN ISO 9863-1] | mm | 10.00 |
| Compressive Strength [ASTM D 1621] | kN/m² | ≥400 |
| Compressive Strength (Permanent Loading) | kN/m² | ≥90 |
| Tensile Strength [EN ISO 10319] | kN/m | ˃6.0 |
| Air gap Between Dimples | l/m² | 7.90 |
| Hydraulic Properties | ||
| In Plane Water Flow | ||
| @ No Load [EN ISO 12958] | l/m.s | 3.50 |
| @ 20 kPa [EN ISO 12958] | l/m.s | 3.10 |
| Geotextile Properties | Polypropylene | |
| Thickness @ 2 kPa [EN ISO 9863-1] | mm | 0.90 (±0.1) |
| Dynamic Perforation Cone Drop Test [EN ISO 13433] | mm | 40.0 (+8) |
| Opening Size (AOS) [EN ISO12956] | µm | 150 |
| Product Dimensions | ||
| Roll Width | Mtr. | 2.30 |
| Roll Length | Mtr. | 20.0 |
‐ Reported value are arithmetic mean values unless otherwise stated, A set of test results derived from specimens cut from one sample and taken across full width of the roll.
‐ The above properties might change at the time of the manufacturing, storing, handling or shipping.
‐ There may be variation in above values due to various factors when tested at other laboratory
Geocomposite drainage layer comprises of a high performance Single Cuspated HDPE (High Density Polyethylene) Core with a geotextile filter thermally bonded to one Side. The Product is practically impermeable on one side. It is used for drainage of all underground ground structures. It comprises a highly compression resistant.
| PROPERTIES | TEST METHOD | UNIT | VALUE Mean (with tolerance) |
| Geocomposites | - | ||
| Thickness @2 kPa | EN ISO 9863-1 | mm | 13.0 [±10%] |
| Mass Per Unit Area | EN ISO 9864 | g/m² | 895 [5.0%] |
| Tensile Strength MD / CMD Elongation @ Peak MD / CMD |
EN ISO 10319 | kN/m | 10.0 | 10.0 [±10%] |
| % | 45.0 | 45.0 [±10] | ||
| CBR Puncture | EN ISO 12236 | N | 1800 [±10%] |
| Hydraulic Properties | - | - | |
| In Plane Water Flow i=1.0 | EN ISO 12958 | l/m.s | - |
| @ 20 kPa | 3.50 | ||
| @ 20 kPa | 3.40 | ||
| @ 20 kPa | 3.15 | ||
| Drainage Core | - | High Density Polyethylene (HDPE) | |
| Thickness @ 2 kPa | EN ISO 9863-1 | mm | 13.0 [±10%] |
| Compressive Strength | ASTM D1621 | kPa | >150 |
| Sheet Thickness | - | mm | 0.50 |
| Air gap between dimples | - | l/m² | 7.90 |
| Hydraulic Properties | - | - | |
| In Plane Water Flow i=1.0 | EN ISO12958 | l/m.s | - |
| @ 20 kPa | 5.50 | ||
| @ 100 kPa | 5.00 | ||
| @ 200 kPa | 4.50 | ||
| Geotextile | - | - | |
| Thickness @ 2 kPa | EN ISO 9863-1 | mm | 1.00 [±10%] |
| Mass per Unit Area | EN ISO 9864 | g/m² | 145 [±10] |
| Tensile Strength MD/CD | EN ISO 10319 | kN/m | 8.00 | 8.00 [±10%] |
| CBR Puncture Resistance | EN ISO 12236 | N | 1500 [-150] |
| Dynamic Perforation Cone Drop | EN ISO 13433 | mm | 32 [+8] |
| Water permeability | EN ISO 11058 | l/m²/sec | 70.0 [±20%] |
| Apparent Opening Size | ASTM D4751 | Micron | 180 [±20%] |
| Product Dimensions | - | - | |
| Roll Width | Mtr. | 2.30 | |
| Roll Length | Mtr. | 20.00 | |
| PROPERTIES | METHOD | UNIT | VALUE |
| Sheet Thickness | — | mm | 0.4 |
| Mass per Unit Area | EN ISO 9864 | GSM | 400 |
| Dimple Height | EN ISO 9863-1 | mm | 8 |
| Compressive Strength | EN 12311-2 | kPa | 150 |
| Tensile Strength | EN 12311-2 | N/50mm | >200 / >200 |
| Air Gap Volume Between Dimples | — | L/sqm | 5 |
| Drain Flow Capacity In Plane | EN 12958 | L/sqm/s | 2.8 |
| Elongation | EN 12311-2 | % | >20 / >25 |
| Width | — | m | 2.3 |
| Length | — | m | 20 |
| Reaction to Fire | — | Class | Class ‘E’ |
Dimple Board should be fixed for vertical application on the wall, ensuring the bubbles face towards the wall. A minimum overlap of 10 cm should be maintained between the sheets. Overlaps can be sealed with glue-insulated tapes. In the case of horizontal application,Dimple Board will be laid with bubbles facing the ground and an overlap of 10 cm between the sheets. Overlaps can be further reinforced with glue-insulated tapes.
• Rolls must not be exposed directly to UV radiation for over a month.
• Rolls must be stored in their original package horizontally under cool and dry condition.
• Rolls should be protected from direct sunlight, rain, etc.
Dimple Drain board is specifically designed for use with all waterproofing membrane systems as well as any torch-applied waterproofing membranes surface. It is made of high density polyethylene (HDPE). It is light weight, flexible, strong, durable, non-toxic, dimple sheet board with 10.0 mm deep dimples. It is impermeable to water and water vapour. It is an efficient, filtered sub-soil drainage system used for drainage of all in- ground structures. It comprises a highly compression resistant and flexible studded plastic dimple core.
| PROPERTIES | UNIT | VALUE |
| Drainage Core | — | HDPE |
| Thickness @ 2 kPa [EN ISO 9863-1] | mm | 10.0 (±10%) |
| Compressive Strength [ASTM D1621] | kPa | ˃150 |
| Sheet Thickness | mm | 0.50 |
| Hydraulic Properties | — | — |
| In Plane Water Flow (i=1.0 @ 100 kPa) [EN ISO 12958] | l/m.s | 4.25 |
| Product Dimensions | — | — |
| Roll Width | m | 2.30 |
| Roll Length | m | 20.00 |
‐ Reported value are arithmetic mean values unless otherwise stated, A set of test results derived from specimens cut from one sample and taken across full width of the roll.
‐ The above properties might change at the time of the manufacturing, storing, handling or shipping.
‐ There may be variation in above values due to various factors when tested at other laboratory.
INDOKON Dimple Drain board is specifically designed for use with all waterproofing membrane systems as well as any torch-applied waterproofing membranes surface. It is made of high density polyethylene (HDPE). It is light weight, flexible, strong, durable, non-toxic, dimple sheet board with 13 mm deep dimples. It is impermeable to water and water vapour. It is an efficient, filtered sub-soil drainage system used for drainage of all in-ground structures. It comprises a highly compression resistant and flexible studded plastic dimple core.
| PROPERTIES | UNIT | VALUE |
| Drainage Core | — | HDPE |
| Thickness @ 2 kPa (EN ISO 9863-1) | mm | 13.0 (±10%) |
| Compressive Strength (ASTM D1621) | kPa | ˃150 |
| Sheet Thickness | mm | 0.50 |
| Hydraulic Properties | — | — |
| In Plane Water Flow (i=1.0 @ 100 kPa) (EN ISO 12958) | l/m.s | 5.00 |
| Product Dimensions | — | — |
| Roll Width | m | 2.30 |
| Roll Length | m | 20.00 |
‐ Reported value are arithmetic mean values unless otherwise stated, A set of test results derived from specimens cut from one sample and taken across full width of the roll.
‐ The above properties might change at the time of the manufacturing, storing, handling or shipping.
‐ There may be variation in above values due to various factors when tested at other laboratory.
