PP GEO GRID

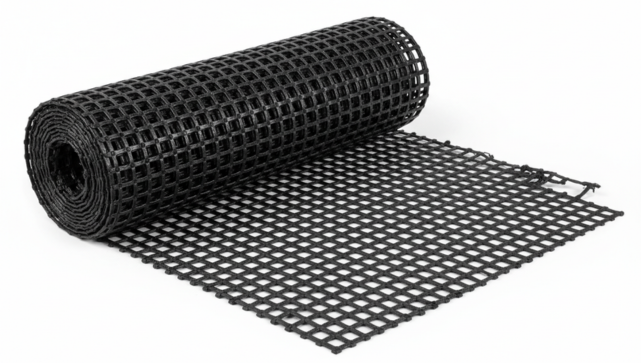

TerraShield PP Geogrid is a grid-like structure made from polypropylene strips or ribs that are stretched and oriented in one or two directions. This creates a high-tensile, lightweight mesh that interlocks with soil, aggregate, or other fill material to improve stability.

Applications

Road & Railway Construction

Retaining Walls

Slope stabilization

Embankments over soft soil

Landfills & Ground improvement projects

Features

  • High tensile strength and low elongation — ideal for soil reinforcement.
  • Excellent resistance to chemical, biological and hydrocarbon attack.
  • Low creep behaviour ensures long-term structural performance.
  • Lightweight, easy to transport and quick to install on site.
  • Good interlock with granular infill for load distribution.
  • Cost-effective solution for retaining walls, base reinforcement and slopes.
  • Available in uniaxial or biaxial configurations to match load direction.

Specifications

    GEO GRID SPECIFICATIONS
    PROPERTY GEO GRID
      Units SS20 SS30 SS40 SS2 SSLA20 SSLA30
    POLYMER
    Minimum carbonblack(1) % 2 2 2 2 2 2
    Roll width m 4.0 & 3.8 4.0 & 3.8 4.0 & 3.8 4.0 3.8 3.8
    Roll length m 50 50 30 50 50 50
    Unit weight kg/m2 0.22 0.33 0.53 0.29 0.22 0.33
    Roll weight kg 46&44 67&64 65&62 60 43 65
    DIMENSIONS
    AL mm 39 39 33 28 65 65
    AT mm 39 39 33 40 65 65
    WLR mm 2.2 2.3 52.2 3.0 4.0 4.0
    WTR mm 2.4 2.8 2.5 3.0 4.0 4.0
    tJ mm 4.1 5.0 5.8 3.8 4.4 7.0
    tLR mm 1.1 2.2 2.2 1.2 0.8 1.5
    tTR mm 0.8 1.3 1.4 0.9 0.8 1.5

    PROPERTY GEO GRID
      Units SS20 SS30 SS40 SS2 SSLA20 SSLA30
    QUALITY CONTROL STRENGTH LONGITUDINAL
    Tult (2) kN/m 20.0 30.0 40.0 17.5 20.0 30.0
    Load at 2% strain (2) kN/m 7.0 10.5 14.0 7.0 7.0 11.0
    Load at 5% strain (2) kN/m 14.0 21.0 28.0 14.0 14.0 22.0
    Approx strain at Tult % 11.0 11.0 11.0 12.0 10.0 9.0
    Junction strength (3) % 95 95 95 90 95 95
    QUALITY CONTROL STRENGTH TRANSVERSE
    Tult (2) kN/m 20.0 30.0 40.0 31.5 20.0 30.0
    Load at 2% strain (2) kN/m 7.0 10.5 14.0 12.0 8.0 12.0
    Load at 5% strain (2) kN/m 14.0 21.0 28.0 23.0 15.0 25.0
    Approx strain at Tult % 10.0 10.0 10.0 10.0 10.0 9.0
    Junction strength (3) % 95 95 95 90 95 95
