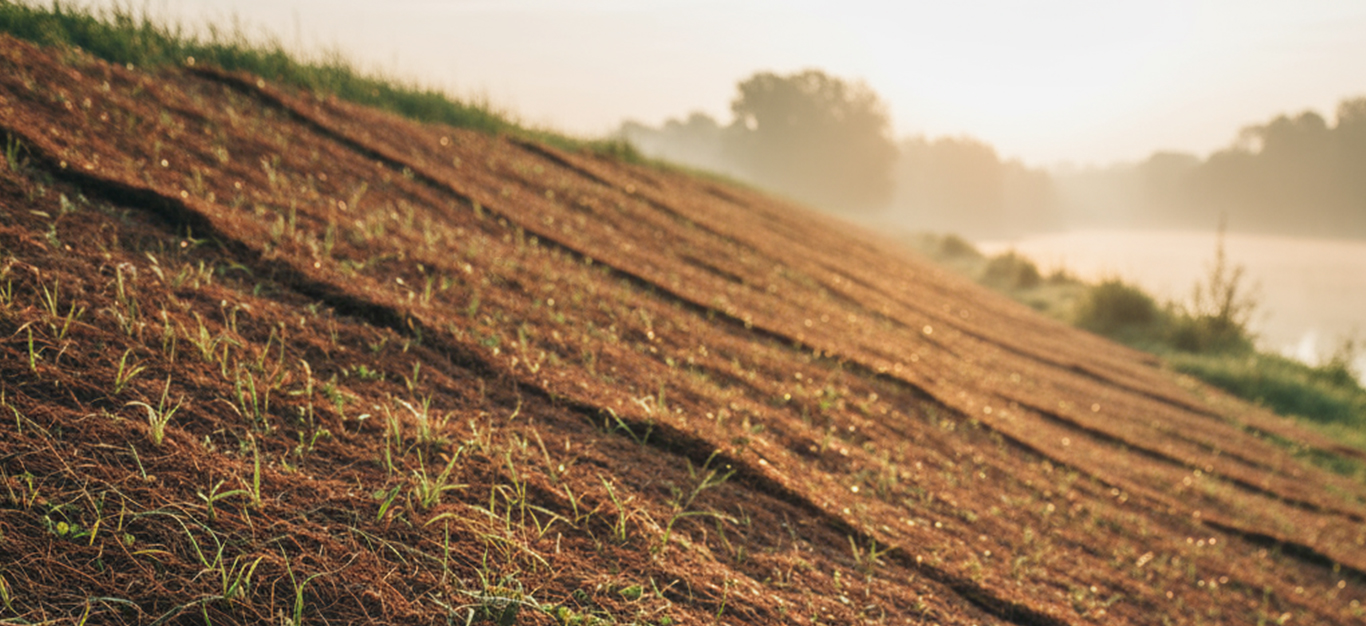

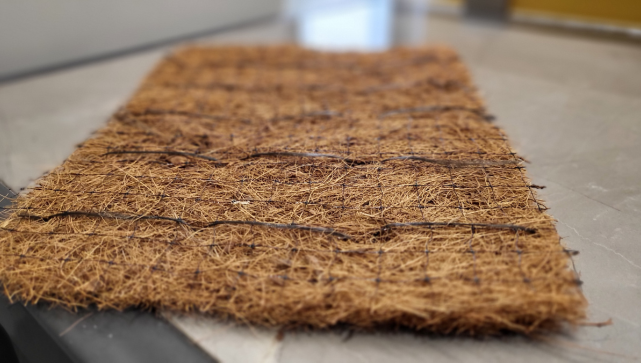

TerraSheild Coir Erosion Control Blanket is manufactured from 100% coconut fiber. Top and bottom covered with UV stabilized black polypropylene net stitching together with a black thread to produce the blanket. The coconut fiber is evenly distributed with-in the net in a roll form. They are shipped in polythene bags with ventilation holes. This blanket is designed for 3-4 years life span in the normal condition.
| Material | 50% Straw and 50% Coir, Brown Photodegradable PP net and PP thread. PP netting is Photodegradable. |
| Dimensions | Width Upto 2.4m, Length Upto 50m |
| Thickness | 5-6mm (tested according to ASTM D 5199) |
| Apparent Opening Size | Nil (tested according to ASTM D 4751) |
| Mass (g/sqm) | 340-360g (tested according to ASTM D 5261) |
| Tensile Strength (kN/m) | MD – 2.95 (tested according to ASTM D 4595) |
| Cross – 1.52 | |
| Elongation at Break | MD 31% & Cross MD 23% (tested according to ASTM D 6818) |
Longevity Note: Longevity depends on soil, water, climate conditions & erosion severity on site.
Vegetation Establishment: Can seed before or after installation. Seedlings can grow through the blanket.
Wildflowers & aquatic plants can be inserted through the mesh after installation.
Overlapping & Anchorage: Proper overlap & anchorage is critical for performance.
| Fiber Materials | Fiber: 100% coconut fiber |
| Netting: Top - Size: Black Polypropylene net; Netting Weight - 7.2GSM Netting: Bottom - Size: Black Polypropylene net; Netting Weight - 7.2GSM Thread: Black Polypropylene | |
| Mesh 13mm x 13mm | |
| Dimensions | Width – 2m/ 2.4m | Length - 50m |
| Area of rolls – 100 / 120SQM | |
| Functional Longevity | 3-4 Years |
| STANDARDS | |
| Tensile Strength ISO-10319 | 295.5 lbs/ft MD (4.02kN/m) - ASTM D5035 |
| D4595 Elongation | 14.6% MD - ASTM D5035 |
| D4491 Flow Velocities | 12.00 ft/s (3.05 m/s) |
| Max Permissible Shear Stress | 2.45 lbs/ft² (108Pa) (UNVegetated Shear Stress) |
| PP SPECIFICATION | |
| Tensile Strength | 4.78 MD kN/m |
| Tensile Strength | 3.65 TD kN/m |
| Yield Point Elongation | 20% MD |
| Yield Point Elongation | 15% TD |
| Mesh Shape | Quadrangular |
| Colour | Black |
| MD Pitch/ TD Pitch | 13mm / 13mm |
| Thread | UV Stabilized Polypropylene |
| Material | 100% Core Fiber, PP Net & PP Thread |
| PP Netting is - Photodegradable | |
| Mesh - 13mm X 13mm | |
| Dimensions | Width Upto 2m, Length Upto 50m |
| Thickness | 7-8.5mm (tested according to ASTM D 5199) |
| Apparent Opening Size | Nil (tested according to ASTM D 4751) |
| Mass (g/sqm) | 690-710g (tested according to ASTM D 5261) |
| Tensile Strength (kN/m) | MD – 4.46 (tested according to ASTM D 4595) |
| CD - 2.93 | |
| Elongation (N) | MD - 31% (tested according to ASTM D 6818) |
| CD - 13.2% |

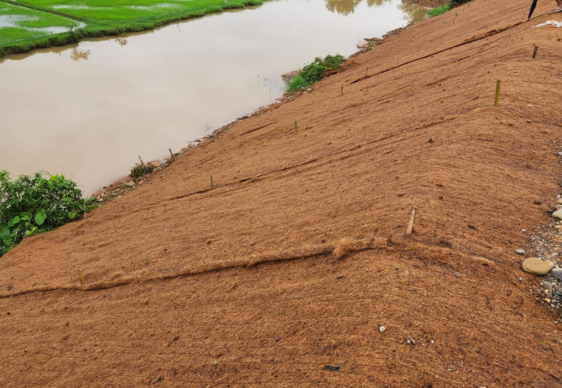

Installation
Vegetation Establishment : Seeding can be undertaken prior to blanket installation and seedlings can grow up through the blanket. Alternatively seeding can undertake after installation and sown on to the blanket.
Hydro seeding is also an effective seed application method over large areas and will provide further support for vegetation growth. Wildflower and aquatic plants and shrubs can be inserted through the coir mesh after installation and the blanket will provide support to vegetation establishment.
Overlapping and Anchorage – Sufficient overlap and anchorage is the key to the success of erosion control blanket products.
