Fiberglass Mesh for Wall Plaster & Construction Reinforcement

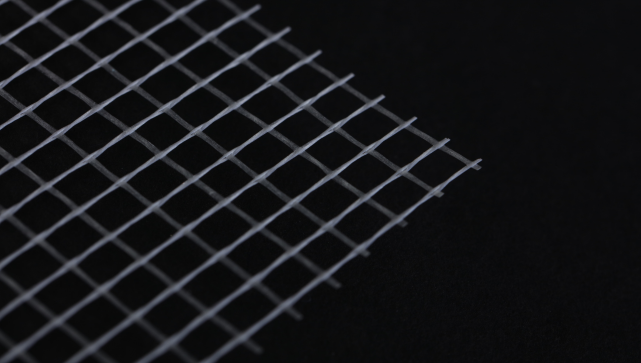

Fibreglass Mesh

Fibreglass Mesh is manufactured by weaving from Fibre Glass Yarn and treated with coating. It has excellent properties like high strength alkali resistance, water resistance, thermal resistance, rot and mildew resistance, temperature, resistance, flexibility, softness and resistance to ageing.

It is used for water proofing on roof in almost all types of structures i.e. buildings of residence, industrial or commercial, hospitals, multiplexes, schools, colleges, metro stations etc.

It helps in reducing the wear and tear of the roofs. It is a high heat and chemical resistance material therefore provides a good insulator and stops the heat from the roof making the top floor cooler. It acts as a Excellent Reinforcement Product and gives long life to the coatings.

Applications

Basement Wall

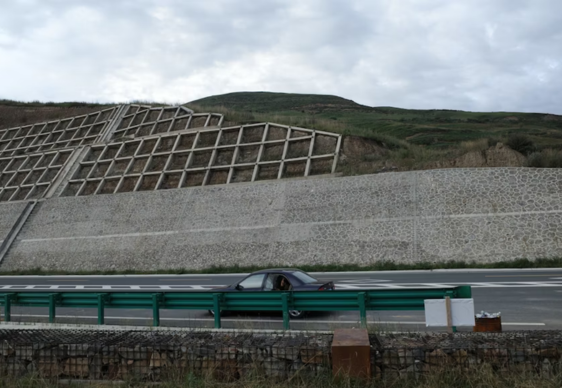

Retaining Walls

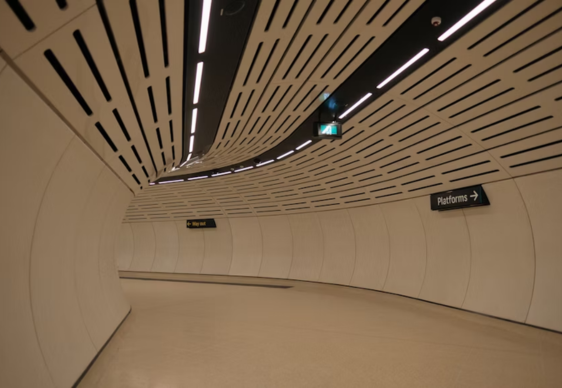

Metro/Train Road Tunnels

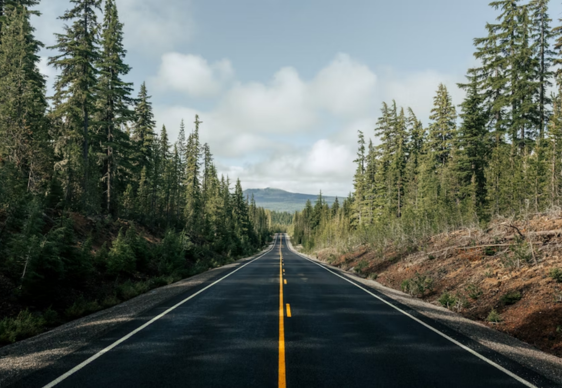

Highways

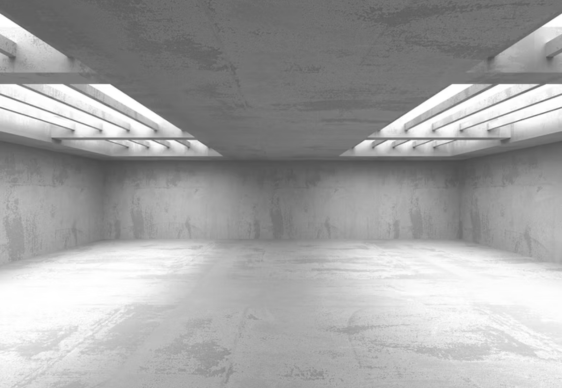

Parking Areas

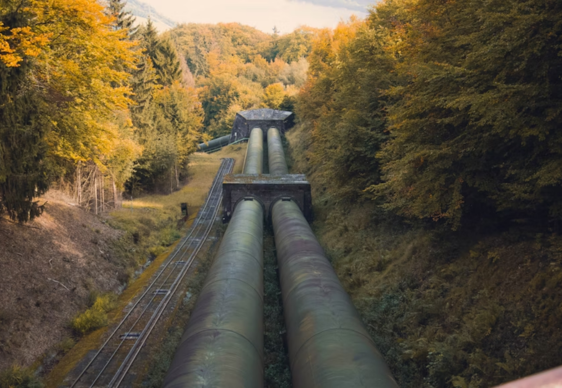

Dams & Pipelines

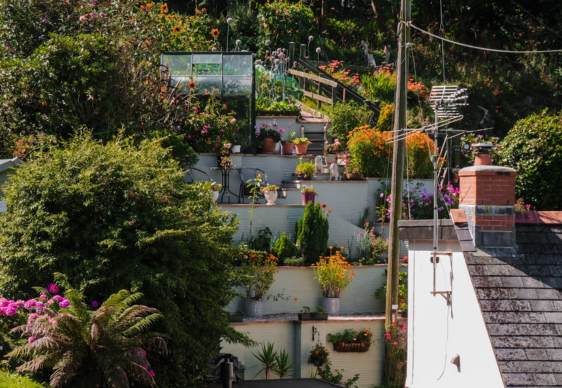

Terrace & Gardens

Features

Corrosion-free reinforcement — ideal where steel corrosion is a concern.
High tensile strength with low elongation for plaster, EIFS, shotcrete reinforcement.
Alkali-resistant formulations for use with cementitious materials.
Lightweight and flexible — easy to cut and apply.
Reduces shrinkage and thermal/crack propagation in renders and overlays.
Improves impact resistance and toughness of thin coatings.
Long-term dimensional stability and minimal creep.

Specifications

FIBERGLASS MESH (45 GSM | 80 GSM | 145 GSM)

PROPERTY	45 GSM	80 GSM	145 GSM
Product	Coated Alkali Resistant Glass Woven Fabric (45 GSM)	Coated Alkali Resistant Fiberglass Mesh Cloth (80 GSM)	Coated Alkali Resistant Fiberglass Mesh Cloth (145 GSM)
Grid Size	2.5 mm x 2.5 mm	5 mm x 5 mm	5 mm x 5 mm
Yarn Tex (TEX)	Warp - 66, Weft - 33	Warp - 33, Weft - 33	Warp - 33, Weft - 33
Density (Count per 25 mm or 1 inch)	Warp - 10, Weft - 10	Warp - 10, Weft - 10	Warp - 10, Weft - 10
Treated Woven Mass	45 G/M²	80 G/M²	145 G/M²
Woven Structure	Leno	Leno	Leno
Resin Content	18%	16%	18%
Tensile Strength (N/5cm * 20 cm)	Warp > 600, Weft > 420	Warp > 600, Weft > 450	Warp > 700, Weft > 550
Storage	Store rolls in a cool, dry location. Store away from the direct contact with ground and concrete	Store rolls in a cool, dry location. Store away from the direct contact with ground and concrete. Store out of direct sunlight.	Store rolls in a cool, dry location. Store away from the direct contact with ground and concrete. Store out of direct sunlight.
Packing	Length- 50 M and Width- 1 M packed in Shrink Film. Carton Packed with 500 SQM.	Coated Alkali Resistant Fiberglass Mesh Cloth is wound in paper tubes. Quantity: 50m length, 1m width. Each roll packed in shrink film or plastic bag.	Coated Alkali Resistant Fiberglass Mesh Cloth is wound in paper tubes. Quantity: 50m length, 1m width. Each roll packed in shrink film or plastic bag.

Download Factsheet

Strong, Flexible, and Built for Durability.
