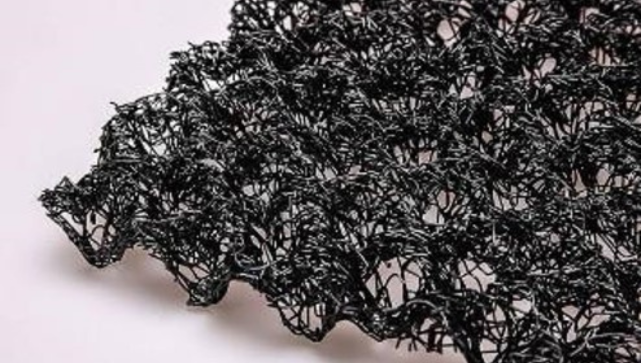

TerraShield 3D Geo Mat provides permanent erosion protection by mimicking natural root structures that bind and stabilize soil. Made from polypropylene monofilaments, they promote rapid vegetation growth and offer long-term root support against harsh erosion forces. Ideal for areas where vegetation alone cannot prevent erosion, such as riverbanks, drainage channels, and steep slopes.
| PARTICULARS | UNITS | VALUE | MPEV |
| Three-dimensional polymer core layer | P P | ||
| Porosity | % | ≥95% | |
| Polymer density | kg/m3 | 1140 | ±50 |
| Unit grammage | g/m2 | 500 | ±50 |
| Thickness | mm | 17 | ±3 |
| Tensile strength (transverse) | KN/m | 2.2 | ±0.6 |
| Tensile strength (longitudinal) | KN/m | 2 | ±0.6 |
| Elongation at break (transverse) | ＞40% | ||
| Elongation at break (longitudinal) | ＞80% | ||
| Roll Sizes (m) | M | 2*25 | |
| Black & UV stabilised | |||
| POLYMER | UNITS | POLYPROPYLENE | |
| Mass per unit area (EN ISO 9864) ±10 | g/m² | 450 | |
| Polymer | °C | 150 | |
| Polymer | kg/m3 | 900 | |
| Polymer | STABILIZED | ||
| REINFORCEMENT | |||
| TYPE | Double twisted woven steel wire mesh heavily GI coated | Double twisted woven steel wire mesh with an additional PVC coating | |
| Mesh Type | cm | 6x8 | 6x8 |
| Wire Diameter (int./ext.) | mm | 2.20 | 2.20/3.20 |
| Nominal PVC coating thickness | mm | Not present | 0.5 |
| Mechanical Properties Composite | |||
| Nominal longitudinal resistance | kN/m | 40 ± 3 | 40 ± 3 |
| Nominal Physical Properties Composite | |||
| Mass per unit area (EN ISO 9864) | g/m² | 1630 | 1920 |
| Voids Index | % | >90 | |
| Nominal Thickness (EN ISO 9863-1) | mm | 12 | |
| Geomat Colour | BLACK | ||
| Roll Length | m | 25 | |
| Roll Width | m | 2 | |
| Roll Area | m² | 50 | |
A 3D Geo Mat is a three-dimensional polypropylene (PP) matrix formed by extruded and thermally bonded polymer filaments. It creates a thick, open structure that mechanically anchors soil, aggregates, and vegetation, providing long-term erosion control and effective geo mat for slope stabilization. When reinforced with galvanized or coated steel wire, it becomes a high-strength reinforced geo-composite suitable for steep slopes and high hydraulic stress areas. This is what leads to the growing demand for Soil stabilization Geo Mat India.
3D Geo Mats are widely used in:
• Highway and expressway embankments
• Railway cut and fill slopes

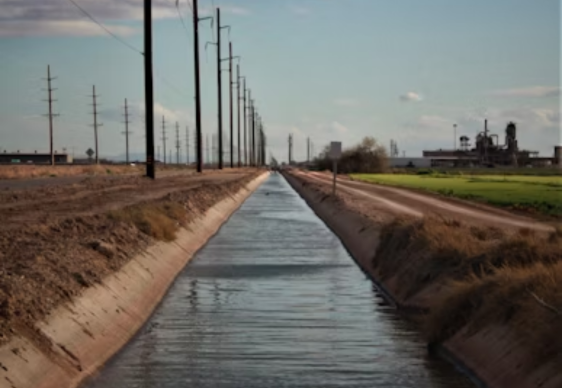

• River banks and canal linings
• Hill road protection and landslide mitigation
• Mining overburden dumps
• Green slope development and hydroseeding support
These products are commonly specified by NHAI, Indian Railways, Metro Rail Corporations, and State Irrigation Departments. It is used as Geo Mat for road and railway embankments and as Geo Mat for drainage channels.
The three-dimensional matrix:
• Reduces surface runoff velocity
• Holds soil particles in place
• Promotes root interlocking and vegetation growth
• Prevents washout during heavy rainfall
Once vegetation grows, the system works as a composite of soil–root–geomat, providing permanent and effective Geo Mat erosion control India solution.
• Non-reinforced 3D Geo Mat:
Used for mild to moderate slopes and low flow velocity areas.
• Reinforced 3D Geo Mat (with steel wire):
Designed for steep slopes (>45°), high rainfall zones, and locations with high shear stress or wind uplift.
Steel reinforcement significantly increases tensile strength, pull-out resistance, and service life.
3D Geo Mats are manufactured from UV-stabilized Polypropylene (PP) or High-Density Polyethylene (HDPE). The polymer is:
• Chemically inert
• Resistant to acids, alkalis, and salts
• Suitable for aggressive soil and water conditions
Steel-reinforced variants use galvanized or PVC-coated steel wire for corrosion resistance. The construction projects make the 3D Geo Mat for B2B in India a reliable solution for large-scale and infrastructural projects.
Yes. 3D Geo Mats are eco-friendly erosion control solutions because they:
• Support natural vegetation growth
• Reduce the need for concrete or stone pitching
• Improve slope aesthetics
• Allow groundwater percolation
They are ideal for green infrastructure and sustainable slope protection projects.
Absolutely. 3D Geo Mats are specifically designed to:
• Hold topsoil and mulch
• Support hydroseeding and turfing
• Protect seedlings during initial growth stages
They ensure higher vegetation survival rates, especially in high rainfall regions and supports long-term geo mat erosion control India.
Depending on project requirements, 3D Geo Mats are available in:
• Thickness: 8 mm to 20 mm
• Mass per unit area: 300 gsm to 700 gsm
Reinforced variants may have higher composite weight due to steel integration.
Installation generally involves:
1. Surface preparation and slope dressing
2. Anchoring with U-pins or rock bolts
3. Overlapping adjacent rolls
4. Filling with soil or aggregate
5. Seeding or hydroseeding
Proper anchorage and overlap ensure long-term performance of Geo Mat for slope stabilization.
With proper UV stabilization, 3D Geo Mats offer a design life of 25–50 years, depending on:
• Exposure conditions
• Reinforcement type
• Installation quality
Vegetation further enhances long-term durability.
